New Organs

Organ Dettelbach St. Augustinus
near Kitzingen, Germany

Organ Dettelbach St. Augustinus

Couplers
Swell
Swell Sub
Swell Super
Swell
Great


-
-
-
-
-


Great
Great
Pedal
Pedal
Pedal




Slider chests with electrical key action and electrical stop action.

Capture System with 256 combinations.

Stoplist:

Manuals:
Pedal:

C - g'''
C - f'

à

56 notes
30 notes

Manual I Great
1. Principal
2. Gamba
3. Koppelflöte
4. Octav
5. Spitzflöte
6. Mixtur 4fach
7. Trompete




8'
8'
8'
4'
2'
1 1/3'
8'

To amplify please click on the picture.

Manual II Swell
 8. Holzgedackt
 9. Rohrflöte
10. Principal
11. Quinte
12. Sesquialter 2fach
12. Tremulant


8'
4'
2'
1 1/3'
2 2/3'

Pedal
13. Subbass
14. Principalbass
15. Nachthorn
16. Posaune
17. Trompete


16'
8'
4'
16'
8'

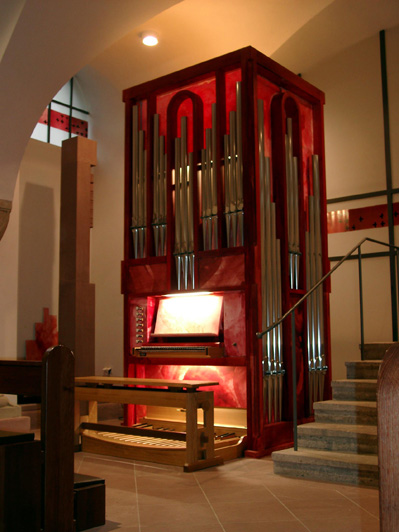

Organ Neumünsterkirche
Würzburg, Germany
Kreuzkrypta

Orgel Neumünsterkirche Würzburg, Kreuzkrypta

Stoplist

Manual:
Pedal:

C - g'''
C - f'

56 notes
30 notes BDO

Manual
1. Holzgedackt
2. Salicional
3. Principal
4. Flûte
5. Nasat
6. Octavin


8'
8'
4'
4'
2 2/3’
2'

Pedal
7. Subbass


16'



Coupler

Manual - Pedal



Slider chests with mechanical key action
and mechanical stop action.

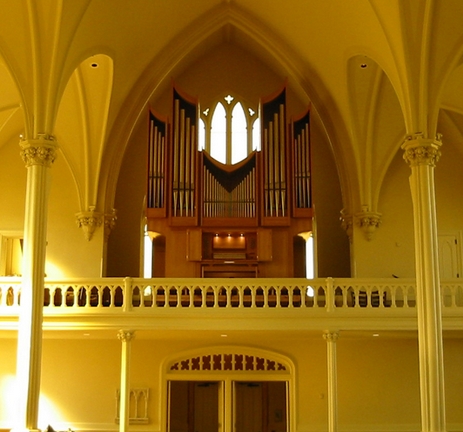

Organ St. Joseph Chapel
Spring Hill College, Mobile, Alabama USA

Organ St. Joseph Chapel

Disposition

Manuals:
Pedal:

C - a'''
C - f'

à

58 notes
30 notes AGO

Great
1. Bourdon
2. Principal
3. Flûte harmonique
4. Oktave
5. Hohlflöte
6. Principal
7. Sesquialtera 2fach
8. Mixtur 4 - 6fach
9. Trompette


16'
8'
8'
4'
4'
2'
2 2/3'
1 1/3'
8'

Swell
10. Holzgedackt
11. Viole
12. Voix celeste
13. Prestant
14. Rohrflöte
15. Nazard
16. Doublette
17. Tierce
18. Hautbois
19. Tremulant


8'
8'
8'
4'
4'
2 2/3'
2'
1 3/5'
8'



Couplers
Swell
Swell
Great


-
-
-


  Great
  Pedal
  Pedal




Slider chests with mechanical key action and electrical stop action with Capture System.

Pedal
19. Subbass
20. Oktavbass
21. Gedackt
22. Choralbass
23. Bombarde
24. Clairon


16'
8'
8'
4'
16'
4'




Organ Erlenbach
near Marktheidenfeld, Germany

Orgel kath. Pfarrkirche Erlenbach bei Marktheidenfeld

Couplers
Swell
Swell
Great


-
-
-


  Great
  Pedal
  Pedal



Slider chests with mechanical key action and electrical stop action.

Capture System with 2000 combinations.



Stoplist:

Manuals:
Pedal:

C - g'''
C - f'

à

56 notes
30 notes

Manual I Great
1. Praestant
2. Konzertflöte
3. Octav
4. Rohrflöte
5. Doublette
6. Mixtur 4fach
7. Trompete


8'
8'
4'
4'
2'
1 1/3'
8'

Manual II Swell
 8. Bourdon
 9. Salicional
10. Voix celeste
11. Praestant
12. Flûte octaviante
13. Nasard
14. Flageolet
15. Tierce
16. Plein jeu 4fach
17. Hautbois
       Tremulant


8'
8'
8'
4'
4'
2 2/3'
2'
1 3/5'
2'
8'

Pedal
18. Subbass
19. Octavbass
20. Hohlflöte
21. Octav
22. Posaune


16'
8'
8'
4'
16'



Organ St. Petersburg
Florida, USA

Orgel St. Petersburg, Florida USA

Stoplist

Manuals:
Pedal:

C - a'''
C - f'

à

58 notes
30 notes AGO

Great
1. Bourdon
2. Principal
3. Flûte harmonique
4. Gemshorn
5. Octave
6. Nasard
7. Superoctave
8. Tierce
9. Mixture 4-6f.


16'
8'
8'
8'
4'
2 2/3'
2'
1 3/5'
1 1/3'

Swell
10. Rohrflöte
11. Viole
12. Viole celeste
13. Prestant
14. Waldflöte
15. Doublette
16. Plein jeu 4f.
17. Basson
18. Trompete
19. Clairon
       Tremulant


8'
8'
8'
4'
4'
2'
1'
16'
8'
4'

Couplers
Swell
Swell
Great


-
-
-


   Great
   Pedal
   Pedal


(Coupler-keyboard)



Slider chests with mechanical key action and electrical stop action.


Pedal
20. Subbass
21. Oktavbass
22. Gedeckt
23. Choralbass
24. Posaune


16'
8'
8'
4'
16'

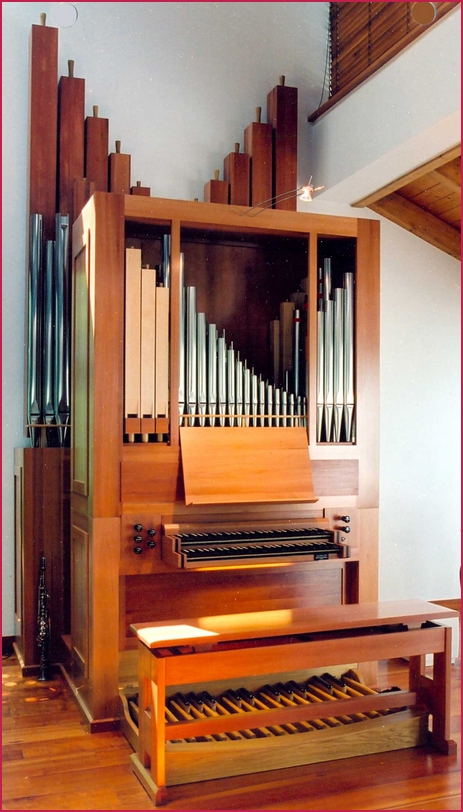

House Organ 2002
Germany

Stoplist

Manuals:
Pedal:

C - g'''
C - f'

à

56 notes
30 notes

Manual I
1. Rohrflöte
2. Offenflöte
Manual II

3. Holzgedeckt
4. Flageolet
Pedal
5. Subbass
6. Gedecktbass
7. Octav


8'
4'

8'
2'

16'
8'
4'












Couplers
Manual   II
Manaul   II
Manual    I


-
-
-


 Manual   I
 Pedal
 Pedal




Slider chests with mechanical key action and mechanical stop action.

To amplify please click on the picture.




BOX ORGAN
(TRAININGSORGAN)
Typ 0145 with Subbass 16'

Organ Bureau of Church Music
Kilianeum
97070 Würzburg, Germany


Truhe Typ 0145 mit Subbass 16'

Stoplist

Manuals:
Pedal:

C - g'''
C - f'

à

56 notes
30 notes

Manual I
1. Rohrflöte

2. Flageolett


8'

2'


C - H
c° - g'''


Holz
Zinn, 30 %
Zinn, 30 %

Manual II
3. Holzgedeckt
4. Flötenprincipal


8'
4'


Holz
Zinn, 30 %

Pedal
5. Gedecktbass
6. Subbass


8'
16'


Holz
Holz

Coupler

Manual II

-

Manual  I

mechanical

Measure of the Organ


Höhe


2,30 m


at mitred Subbass 16'



Breite

1,54 m



Tiefe

2,59 m

with bench and pedalboard

Slider chests with mechanical key action and mechanical stop action

To amplify please click on the picture.
